Comprehensive Test System for Conductive Slip Ring
-
Application
This system is used for the real-time, high-speed, accurate and reliable testing of various functions and indicators of conductive slip rings, including continuity, static resistance, dynamic resistance, electrical noise, insulation resistance, dielectric strength, instantaneous interruption, loop voltage drop, signal ring performance, rotating torque and other parameters.
Product Features
1.It covers the static and dynamic parameter testing of all types of conductive slip rings.
2.Each tester can be used independently, and can also form a system with one or more other testers for simultaneous operation.
Comprehensive Test System for Conductive Slip Ring
Comprehensive Test System for Conductive Slip Ring
- 设备配置
- 设备功能
- 技术参数
Device configuration
| Upper computer | External industrical personal computer/external integrated machine | ||
| Test system part | Electrical parameter tester | Parallel dynamic resistance tester | Instantaneous break tester |
| Loop voltage drop tester | Signal Ring Tester | Torque tester | |
| Drive the turntable | ...... | ...... | |
| Adapt part | Adapt the patch cable | Adapter(optional) | ...... |
| Enclosure | Provide documentation according to the selected tester unit | ||
| Software part | User test software | ||

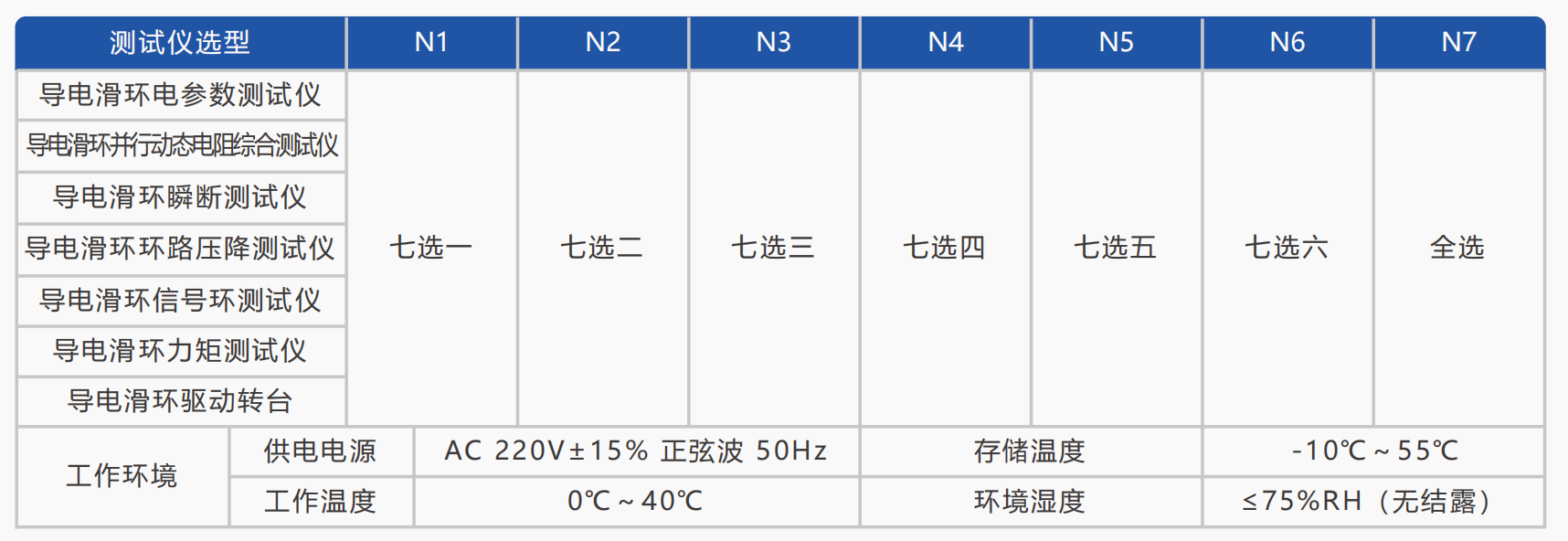

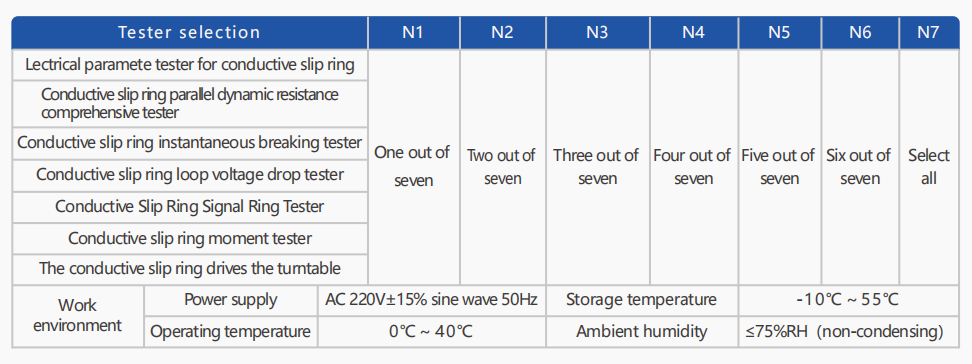

Equipment selection
| Model | Y | DHZ | G | N1 |
| Type | Full name of the company | Family name | Upper computer | Tester selection |
| Meaning | Shaanxi Yonghui Measurement and Control Technology Co.,Ltd | Conductive slip ring integrated test system | G: External industrial | N1～N7 |
| Y:External all-in-one machine |
